Product Details:
|
| Height A: | 345mm | Outer Diameter A: | 221mm |
|---|---|---|---|
| Inner Diameter A: | 136mm | Height B: | 275mm |
| Outer Diameter B: | 131mm | Inner Diameter B: | 105mm |
| Part No.: | 4642122 P789077 | Function: | Gas Filtration |
| Product Type: | Excavator Air Filter | Structure: | Filter Element And Housing |
| High Light: | Excavator Air Filter 345*221mm,HITACHI EX250-5G Excavator Air Filter,Air Filter HITACHI 4642122 |
||
4642122 P789077 Excavator Parts Excavator Air Filter Filter Element
Specifiion
| Item | BA-6715AB | ||
| Type | Excavator Air Filter | ||
| Part No. | 4642122 | ||
| P789077 | |||
| Applicable Models | HITACHI EX250-5G | ||
| HITACHI EX260-5G | |||
| Size A(H:OD:ID) | 345mm : 221mm : 136mm | ||
| Size B(H:OD:ID) | 275mm : 131mm : 105mm | ||
| Function | Gas Filtration | ||
| Structure | Filter Element And Housing | ||
Description
Our products are designed with a main filter element and a safety filter element, which can efficiently filter the air entering the engine, promote full combustion of fuel, and ensure stable engine performance. It is also manufactured by a multi-station continuous mold, and a single component is completed at one time, with high dimensional accuracy and strong consistency.
The air filter is a device that filters out particulate impurities in the air. When the car is driving with the air conditioner, it needs to inhale external air into the cabin, but the air contains many different particles, such as dust, pollen, soot, abrasive particles, ozone, odor, nitrogen oxides, sulfur dioxide, carbon dioxide, benzene, etc.

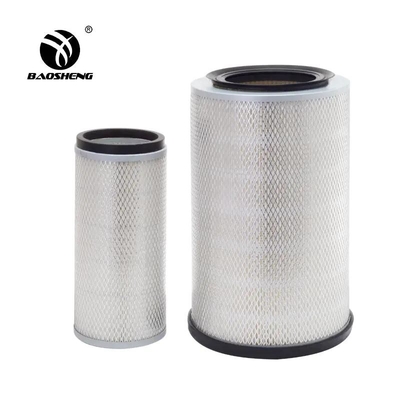

This product has two specifiions and models, filter element A and filter element B, A is a large size, B is a small size, so the prices of the two are not the same, different specifiions can be applied to different models and sizes, and the product diagram is only intuitive Display, the specific model size will be shipped according to the size selected by the customer.
Features
1 . Dedied Air Shroud, Baosteel Metal Mesh.
Air diversion design to maximize the filtration efficiency of the gas and prolong the service life of the filter. The metal mesh is made of Shanghai Baosteel sheet, with excellent compression and corrosion resistance.
2 . EPDM, Radial Seal For Reliable Performance.
EPDM rubber, good flexibility, corrosion resistance, high and low temperature resistance, stable sealing performance. Radial sealing process provides stable and reliable filtration performance for the filtration system.
3 . Strictly Follow The Original Requirements To Develop Better Products.
We always adhere to the quality policy of "quality assurance, industry expertise", and continue to grow and develop, Hong Kong Baosheng Filter Co., Ltd. has experienced professional designers and quality engineers, and has a complete set of imported professional filter production lines and supporting equipment.
