Product Details:
|
| Height A: | 380mm | Outer Diameter A: | 225mm |
|---|---|---|---|
| Inner Diameter A: | 181/121mm | Height B: | 360mm |
| Outer Diameter B: | 180mm/120mm | Inner Diameter B: | 92mm |
| Part No.: | AF26531 | Function: | Gas Filtration |
| Product Type: | Excavator Air Filter | Structure: | Filter Element And Housing |
| High Light: | AF26531 Excavator Tractor Air Filter,Tractor Air Filter 180mm 120mm,AF26531 HUMMER Air Filter |
||

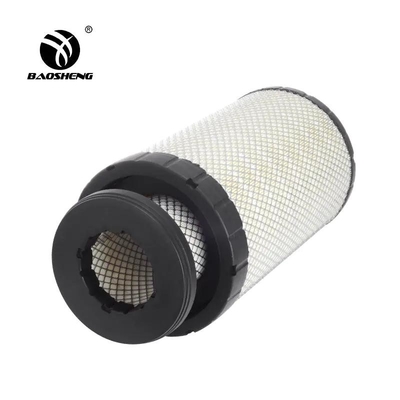

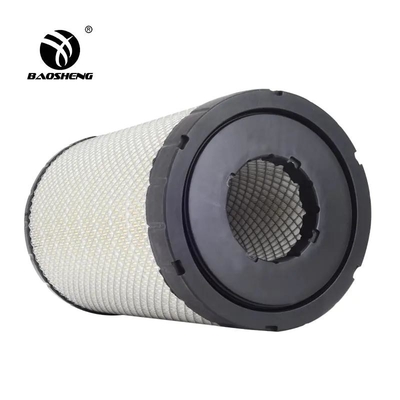

AF26531 Excavator Parts Excavator Air Filter Essential Parts
Specifiion
| Item | BA-6706 | ||
| Type | Excavator Air Filter | ||
| Part No. | AF26531 | ||
| Applicable Models | LONGKING 220D | ||
| LONGKING LK225 | |||
| LONGKING LG6215D | |||
| JIANGLU CN150 | |||
| HUMMER 320 SINGLE CYLINDER ROLLER | |||
| Size A(H:OD:ID) | 380mm :225mm : 181/121mm | ||
| Size B(H:OD:ID) | 360mm : 180/120mm : 92mm | ||
| Function | Gas Filtration | ||
| Structure | Filter Element And Housing | ||
Description
Our products are designed with a main filter element and a safety filter element, which can efficiently filter the air entering the engine, promote full combustion of fuel, and ensure stable engine performance. It is also manufactured by a multi-station continuous mold, and a single component is completed at one time, with high dimensional accuracy and strong consistency.
When the engine is working, it needs to suck in a lot of air. If the air is not filtered, the dust suspended in the air is sucked into the cylinder, which will accelerate the wear of the piston group and the cylinder. Larger particles entering between the piston and the cylinder can cause serious "pulling the cylinder", which is especially serious in dry and sandy working environments. The air filter is installed in front of the carburetor or the intake pipe, and plays the role of filtering out dust and sand in the air, so as to ensure that sufficient and clean air enters the cylinder.

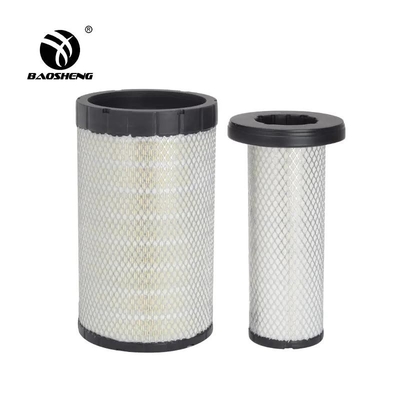

This product has two specifiions and models, filter element A and filter element B, A is a large size, B is a small size, so the prices of the two are not the same, different specifiions can be applied to different models and sizes, and the product diagram is only intuitive Display, the specific model size will be shipped according to the size selected by the customer.
Features
1 . Baosteel Metal Mesh, Imported Filter Material,High Filtration Accuracy.
The metal mesh is made of Shanghai Baosteel sheet, with excellent compression and corrosion resistance.The lamination process + imported filter paper greatly increases the ash capacity of the filter element and prolongs the service life.
2 . Special PU glue, Radial Seal For Reliable Performance.
The special PU glue is formed by one-time injection molding, with good flexibility, high and low temperature resistance, and stable sealing performance. Radial sealing process provides stable and reliable filtration performance for the filtration system.
3 . Strictly Follow The Original Requirements To Develop Better Products.
We always adhere to the quality policy of "quality assurance, industry expertise", and continue to grow and develop, Hong Kong Baosheng Filter Co., Ltd. has experienced professional designers and quality engineers, and has a complete set of imported professional filter production lines and supporting equipment.
