Product Details:
|
| Height A: | 265mm | Outer Diameter A: | 208mm |
|---|---|---|---|
| Inner Diameter A: | 130mm | Height B: | 250mm |
| Outer Diameter B: | 124mm | Inner Diameter B: | 92mm |
| Part No.: | 11004-910319 109QF16-3030 | Function: | Product Type |
| Structure: | Filter Element And Housing | ||
| High Light: | LOVOL FR60 Hydraulic Air Filter,109QF16-3030 Hydraulic Air Filter,Air Filter Element 11004-910319 |
||
11004-910319 109QF16-3030 Excavator Parts Excavator Air Filter
Specifiion
| Item | BA6682AB | ||
| Type | Excavator Air Filter | ||
| Part No. | 11004-910319 | ||
| 109QF16-3030 | |||
| Applicable Models | LOVOL FR60 | ||
| LOVOL FR65 | |||
| LOVOL FR80 IRON LID | |||
| Size A(H:OD:ID) | 265mm : 208mm : 130mm | ||
| Size B(H:OD:ID) | 250mm : 124mm : 92mm | ||
| Function | Gas Filtration | ||
| Structure | Filter Element And Housing | ||
Description
Our products are designed with a main filter element and a safety filter element, which can efficiently filter the air entering the engine, promote full combustion of fuel, and ensure stable engine performance.It is also manufactured by a multi-station continuous mold, and a single component is completed at one time, with high dimensional accuracy and strong consistency.
When the engine is working, it needs to suck in a lot of air. If the air is not filtered, the dust suspended in the air is sucked into the cylinder, which will accelerate the wear of the piston group and the cylinder. Larger particles entering between the piston and the cylinder can cause serious "pulling the cylinder", which is especially serious in dry and sandy working environments. The air filter is installed in front of the carburetor or the intake pipe, and plays the role of filtering out dust and sand in the air, so as to ensure that sufficient and clean air enters the cylinder.

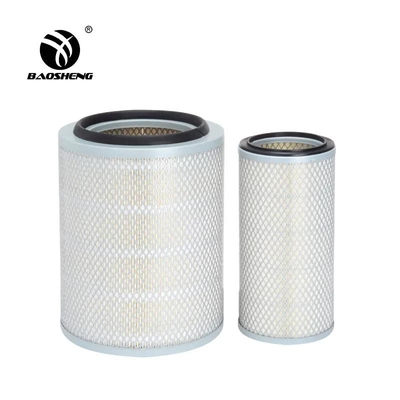

This product has two specifiions and models, filter element A and filter element B, A is a large size, B is a small size, so the prices of the two are not the same, different specifiions can be applied to different models and sizes, and the product diagram is only intuitive Display, the specific model size will be shipped according to the size selected by the customer.
Features
1 . Dedied Air Shroud, Baosteel Metal Mesh.
Air diversion design to maximize the filtration efficiency of the gas and prolong the service life of the filter,The metal mesh is made of Shanghai Baosteel sheet, with excellent compression and corrosion resistance.
2 . EPDM, Radial Seal For Reliable Performance.
EPDM rubber, good flexibility, corrosion resistance, high and low temperature resistance, stable sealing performance.Radial sealing process provides stable and reliable filtration performance for the filtration system.
3 . Strictly Follow The Original Requirements To Develop Better Products.
We always adhere to the quality policy of "quality assurance, industry professionalism". Only with guaranteed quality and professionalism in the industry can we gain the trust of customers. Hong Kong Baosheng Filter Co., Ltd. has experienced professional designers and quality engineers. , with a full set of imported professional filter production lines and supporting equipment.
