Product Details:
|
| Height A: | 290mm | Outer Diameter A: | 161mm/133mm |
|---|---|---|---|
| Inner Diameter A: | 85mm | Height B: | 243mm |
| Outer Diameter B: | 98/82mm | Inner Diameter B: | 54mm |
| Part No.: | 11S1-20111 600-181-7260 | Function: | Gas Filtration |
| Product Type: | Excavator Air Filter | Structure: | Filter Element And Housing |
| High Light: | 243mm Height Excavator Air Filter,Excavator Air Filter 11S1-20111,600-181-7260 HYUNDAI Excavator Filter |
||
11S1-20111 600-181-7260 Excavator Parts Excavator Air Filter
Specifiion
| Item | BA6602AB | ||
| Type | Excavator Air Filter | ||
| Part No. | 11S1-20111 600-181-7260 | ||
| 600-181-7260 | |||
| Applicable Models | KOMATSU PC60-7 | ||
| KOMATSU PC60-7C | |||
| SUMITOMO SH45 | |||
| HYUNDAI R55-3 | |||
| HYUNDAI R55-5 | |||
| HYUNDIA R55-7 | |||
| HYUNDIA R60-5 | |||
| DAEWOOD DH55-V | |||
| Size A(H:OD:ID) | 290mm :161/133mm : 85mm | ||
| Size B(H:OD:ID) | 243mm : 98/82mm : 54mm | ||
| Function | Gas Filtration | ||
| Structure | Filter Element And Housing | ||
Description
Our products are designed with a main filter element and a safety filter element, which can efficiently filter the air entering the engine, promote full combustion of fuel, and ensure stable engine performance. It is also manufactured by a multi-station continuous mold, and a single component is completed at one time, with high dimensional accuracy and strong consistency.
When the engine is working, it needs to suck in a lot of air. If the air is not filtered, the dust suspended in the air is sucked into the cylinder, which will accelerate the wear of the piston group and the cylinder. Larger particles entering between the piston and the cylinder can cause serious "pulling the cylinder", which is especially serious in dry and sandy working environments. The air filter is installed in front of the carburetor or the intake pipe, and plays the role of filtering out dust and sand in the air, so as to ensure that sufficient and clean air enters the cylinder.

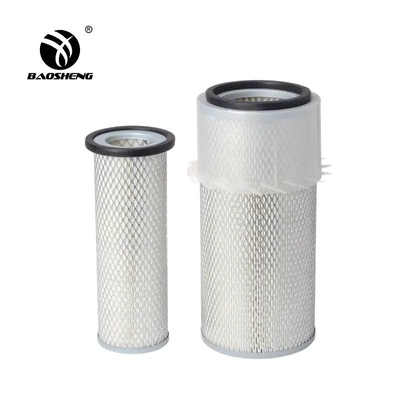

This product has two specifiions and models, filter element A and filter element B, A is a large size, B is a small size, so the prices of the two are not the same, different specifiions can be applied to different models and sizes, and the product diagram is only intuitive Display, the specific model size will be shipped according to the size selected by the customer.
Features
1 . Baosteel Metal Mesh, Dedied Air Shroud.
The metal mesh is made of Shanghai Baosteel sheet, with excellent compression and corrosion resistance. Air diversion design to maximize the filtration efficiency of the gas and prolong the service life of the filter.
2 . Special PU glue, Radial Seal For Reliable Performance.
The special PU glue we use is a one-time injection molding, with good flexibility, high and low temperature resistance, and stable sealing performance. There is also a radial sealing process used in the product to provide stable and reliable filtration performance for the filtration system.
3 . Strictly Follow The Original Requirements To Develop Better Products.
"Quality assurance, industry professionalism" is the philosophy our company has been advoing, we have been focusing on product quality, which is the basic requirement for customers to trust us, Hong Kong Baosheng Filter Co., Ltd. has experienced professional designers and quality engineers , with a full set of imported professional filter production lines and supporting equipment. Import inspection and testing equipment.
