Product Details:
|
| Outer Diameter: | 94mm | Height: | 130mm |
|---|---|---|---|
| Part No.: | 16444-NY025 EF-1801 4642641 | Product Type: | Oil-Water Separation |
| Funtion: | Drain The Accumulated Water | Advantage: | High Pressure Resistance |
| Working Principle: | Sieving Effect | Purpose: | Improve Engine Life |
| High Light: | EF-1801 Water Separator In Diesel Engine,Water Separator In Diesel Engine SH350,16444-NY025 diesel fuel water separator |
||

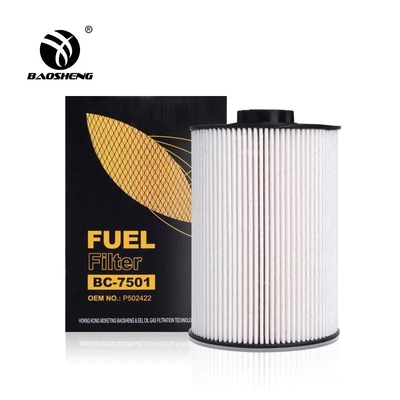

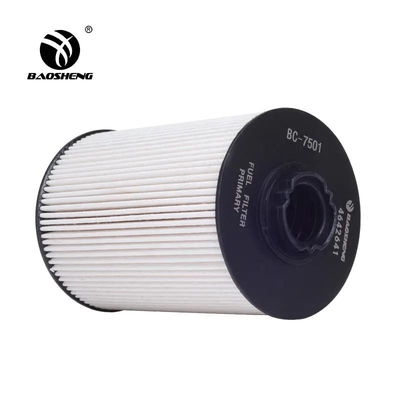

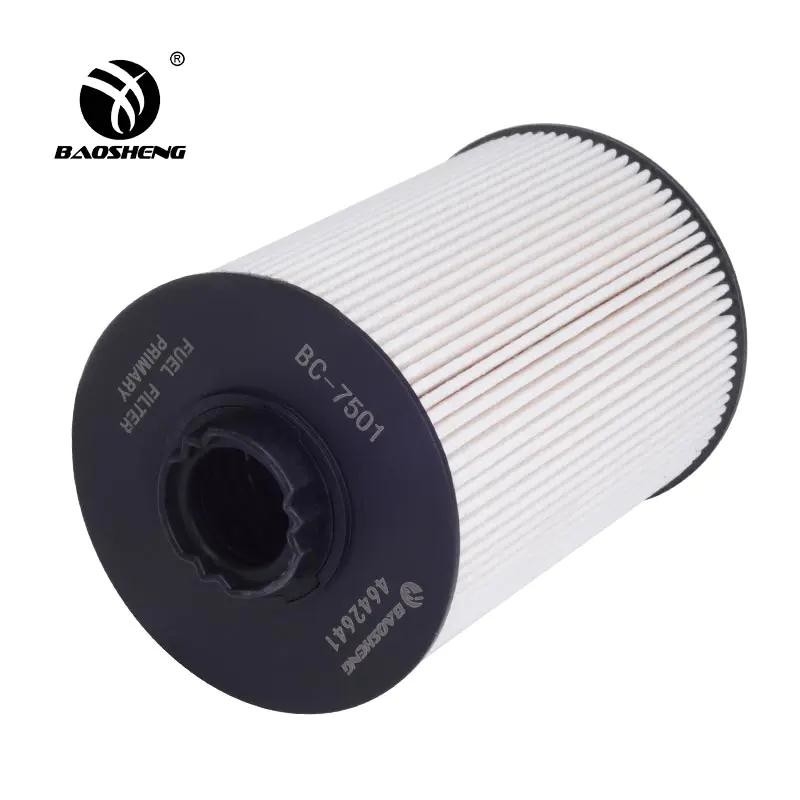

16444-NY025 EF-1801 Oil-Water Separation Excavator Parts Filter Element
Specifiion
| Item | BC7501 | ||
| Type | Oil-Water Separation | ||
| Part No. | 16444-NY025 | ||
| EF-1801 | |||
| 4642641 | |||
| Applicable Models | KATO HD820-V | ||
| KATO HD820-5 | |||
| SUMITOMO SH350 | |||
| SUMITOMO SH400 | |||
| SUMITOMO SH460 | |||
| SUMITOMO SH350-5 | |||
| SUMITOMO SH360-5 | |||
| JCB JCB130LC | |||
| CASE CAS150 | |||
| CASE CAX180 | |||
| CASE CAS210A | |||
| CASE CAS360 | |||
| CASE CAS460 | |||
| Outer Diameter | 94mm | ||
| Height | 130mm | ||
| Funtion | Drain The Accumulated Water | ||
| Structure | Filter Element And Housing | ||
| Advantage | High Pressure Resistance | ||
| Working Principle | Sieving Effect | ||
Description
This product has two specifiions and models, filter element A and filter element B, A is a large size, B is a small size, so the prices of the two are not the same, different specifiions can be applied to different models and sizes, and the product diagram is only intuitive Display, the specific model size will be shipped according to the size selected by the customer.
Its working principle is mainly based on the density difference between water and fuel oil, using the principle of gravity sedimentation to remove impurities and water, in addition, it has diffusion cones, filters and other separation elements to enhance the effect of oil-water separation.
Features
1 . Baosteel Metal Mesh, Pressure Resistance And Corrosion Resistance.
The materials used in the metal mesh are all from Shanghai Baosteel sheets, which have excellent compressive and anti-corrosion capabilities, can adapt to work under complex working conditions, and ensure the efficient operation of the engine.
2 . Strictly Follow The Original Requirements To Develop Better Products.
We always adhere to the quality policy of "quality assurance, industry expertise", and continue to grow and develop, Hong Kong Baosheng Filter Co., Ltd. has experienced professional designers and quality engineers, and has a complete set of imported professional filter production lines and supporting equipment.
3 . Fine Lamination Process, Higher Gray Capacity.
The film coating process + imported filter paper greatly increases the ash content of the filter element, improves the filtration efficiency of the filter, and prolongs the service life of the filter.
