Product Details:
|
| Outer Diameter: | 108mm | Height: | 200mm |
|---|---|---|---|
| Thread: | 1-14 UNF | Part No.: | 1R-0770 P550626 |
| Product Type: | Fuel-Water Separator | Function: | Drain The Accumulated Water |
| Advantage: | 98.7% Oil-water Separation Performance | Purpose: | Improve Engine Life |
| High Light: | erpillar Water Separator Filter,Fuel Water Separator Filter P550626,Fuel Oil Water Separator 108mm |
||

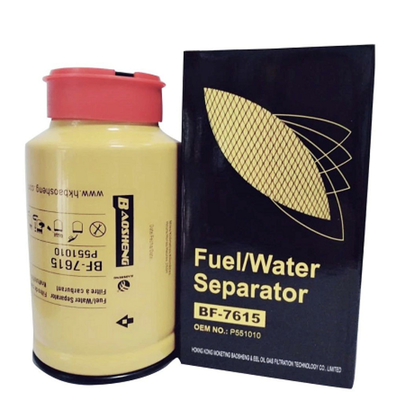

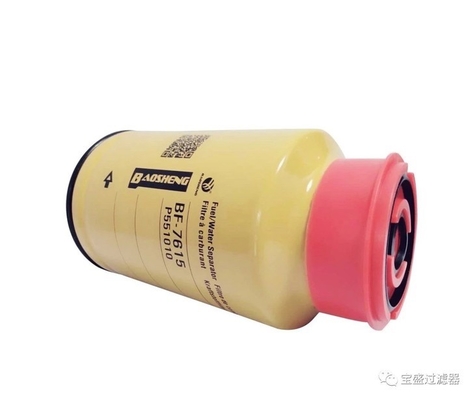

ERPILLAR Fuel And Water Separator Filter BF7615 P550626
Specifiion
| Item Name | BF7615 | |
| Type | Fuel water separator | |
| Part No. | 1R-0770 | |
| P550626 | ||
| Applicable Models | ERPILLAR | |
| Height | 200mm | |
| Outer Diameter | 108mm | |
| Thread | 1-14 UNF | |
| Function | Dust Off | |
| Purpose | Engine Protection | |
| Structure | Filter Element And Housing | |
| Advantage | Strong Filtration Ability | |
Description
BF7615 has a filtration accuracy of 15 microns, 98.7% oil-water separation performance, 100% replacement of original oil and water, and protection of fuel injection nozzle,Due to the dirt and dust sticking on the diesel filter element, once these foreign objects enter the filter element during replacement, it will cause damage to the diesel pump and injector. In order to prevent foreign matter from sticking to the filter element, the filter element cover should be used for protection. Pay attention to the reverse installation of the rubber seal. Reverse installation will make it difficult to install the filter tightly. Tightening with a filter wrench will cause deformation. Insufficient installation or deformation of the cylinder block will cause air and garbage in the fuel to enter, causing poor engine operation or damage to the fuel supply pump and injector.
The product diagram is only intuitive Display, the specific model size will be shipped according to the size selected by the customer.Our small carton packaging, large carton + foam board double protection, to ensure road safety.
Features
1 . Baosteel Metal Mesh, Pressure Resistance And Corrosion Resistance.
The air guide design used in our products can maximize the filtration efficiency of the gas. The metal mesh adopts Shanghai Baosteel sheet, which has excellent pressure resistance and corrosion resistance, which prolong the life of the filter to a certain extent.
2 . Strictly Follow The Original Requirements To Develop Better Products.
We always adhere to the quality policy of "quality assurance, industry expertise", and continue to grow and develop, Hong Kong Baosheng Filter Co., Ltd. has experienced professional designers and quality engineers, and has a complete set of imported professional filter production lines and supporting equipment.
3 . Fine Lamination Process, Higher Gray Capacity.
The film coating process + imported filter paper greatly increases the ash content of the filter element, improves the filtration efficiency of the filter, and prolongs the service life of the filter.
